OMNIDIRECTIONAL ACOUSTIC DETERRENT DEVICE
EV-360HD
Overview
The EV360HD Omnidirectional Acoustic Bird Deterrent is a high-performance audio device specifically designed for long-range and wide-area bird dispersal. Featuring a 360-degree omnidirectional acoustic design, it ensures uniform sound distribution without blind spots. The system is widely applicable in airports, agricultural fields, coastal ports, wetlands, forests, and critical infrastructure, effectively reducing bird strike risks, protecting crops, and supporting wildlife management.
plus
plus
plus
plus
产品图片 1

360° Omnidirectional Sound Emission

Unique acoustic design ensures uniform sound diffusion in all directions, effectively covering runways, aprons, and surrounding areas without dead zones.

High Power Output

Equipped with a powerful amplifier, the system can produce a maximum sound pressure level of 140 dB, ensuring effective long-distance bird deterrence.

Clear Acoustic Performance

Advanced audio processing minimizes distortion, delivering clear, sharp, and effective deterrent sounds, even at high volume, to maximize impact on birds.

Rugged and Durable

Constructed with high-strength, corrosion-resistant materials, the device offers waterproof, dustproof, and shock-resistant performance, suitable for long-term outdoor operation in harsh environments.

Flexible Installation

Supports cabinet-mounted, pole-mounted, or modular stacked installations, enabling quick deployment across airports, farmlands, and coastal monitoring sites.

Technical Specifications

Performance Parameter
Rated Power ≤1200W
Frequency Response 500Hz–5kHz @ -10dB
Maximum SPL 140 dB ±2 dB @1m @2.7kHz
Peak SPL 146 dB ±2 dB @1m @2.7kHz
Directivity 360°
Protection Level IP56
Installation Floor cabinet mount or vertical pole mount
Operating Temperature -20℃ to +55℃
Dimensions (Diameter × Height) 700 × 700 × 3206 mm
Weight ≥200 kg

Optional Configurations

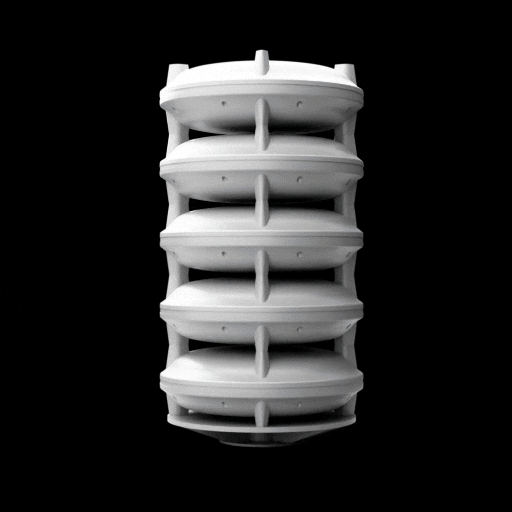

High-definition long-range omnidirectional acoustic deterrent device, available in single-disc, dual-disc, or quad-disc configurations. All models are equipped with transducer technology and feature a modular design, allowing components to be replaced independently.
Technical Specifications
Rated Power:≤1200W Frequency Response:500Hz–5kHz @ -10dB
Maximum SPL:140 dB ±2 dB @1m @2.7kHz Peak SPL:146 dB ±2 dB @1m @2.7kHz
Directivity:360° Protection Level:IP56 Installation:Floor cabinet mount or vertical pole mount
Operating Temperature:-20℃ to +55℃ Dimensions (Diameter × Height):700 × 700 × 3206 mm Weight:≥200 kg
