EV800 | EchoVista

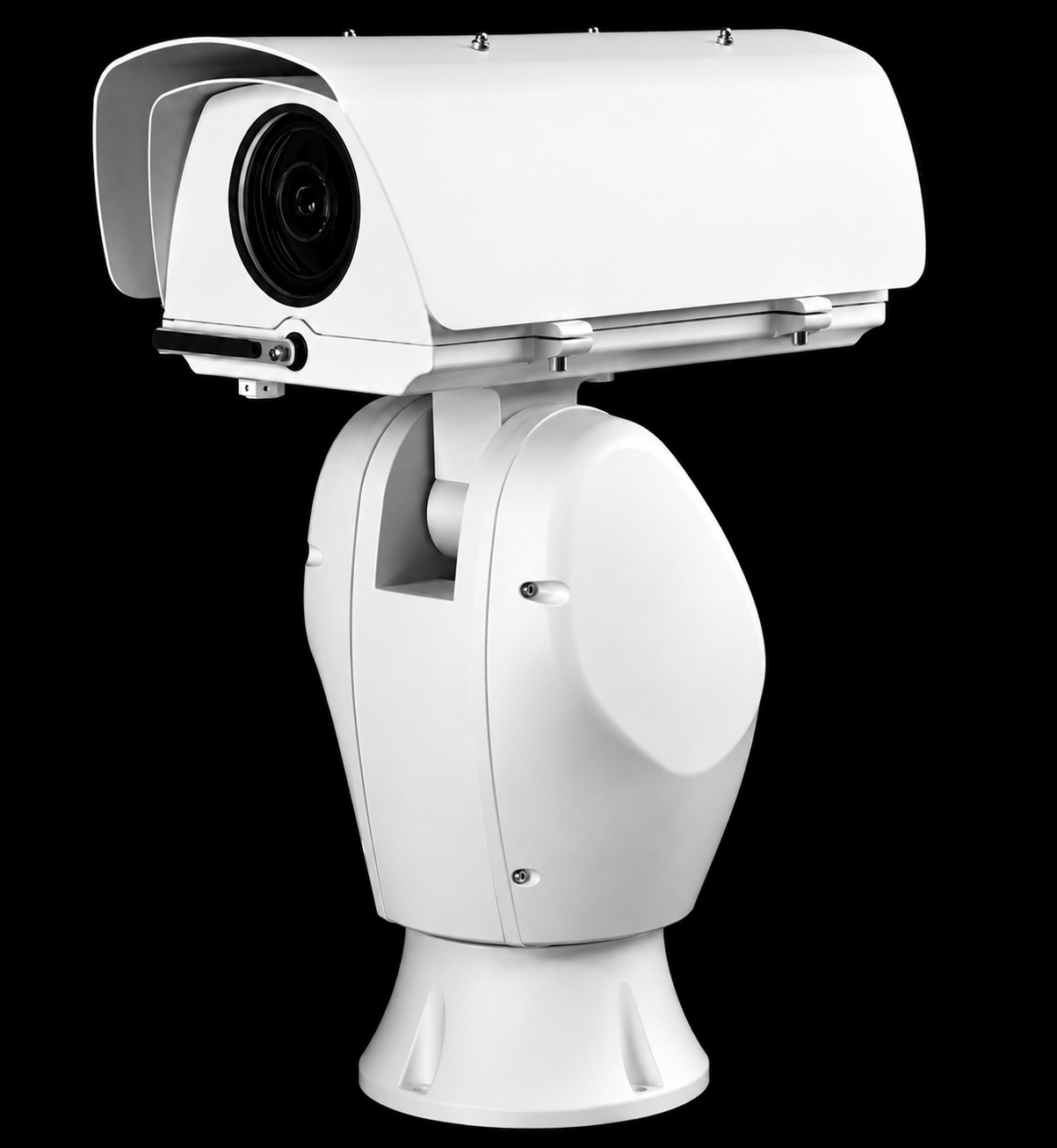

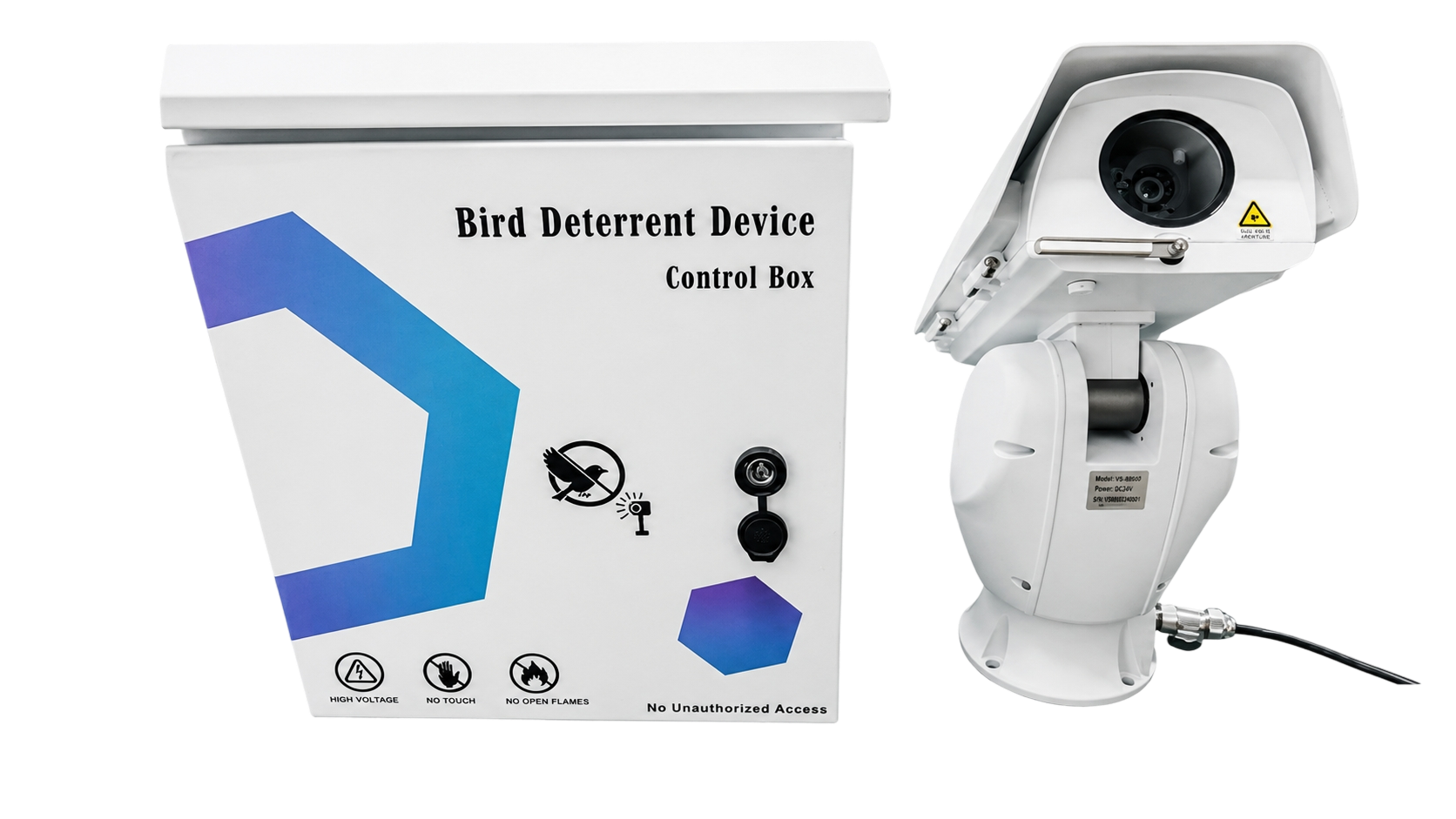

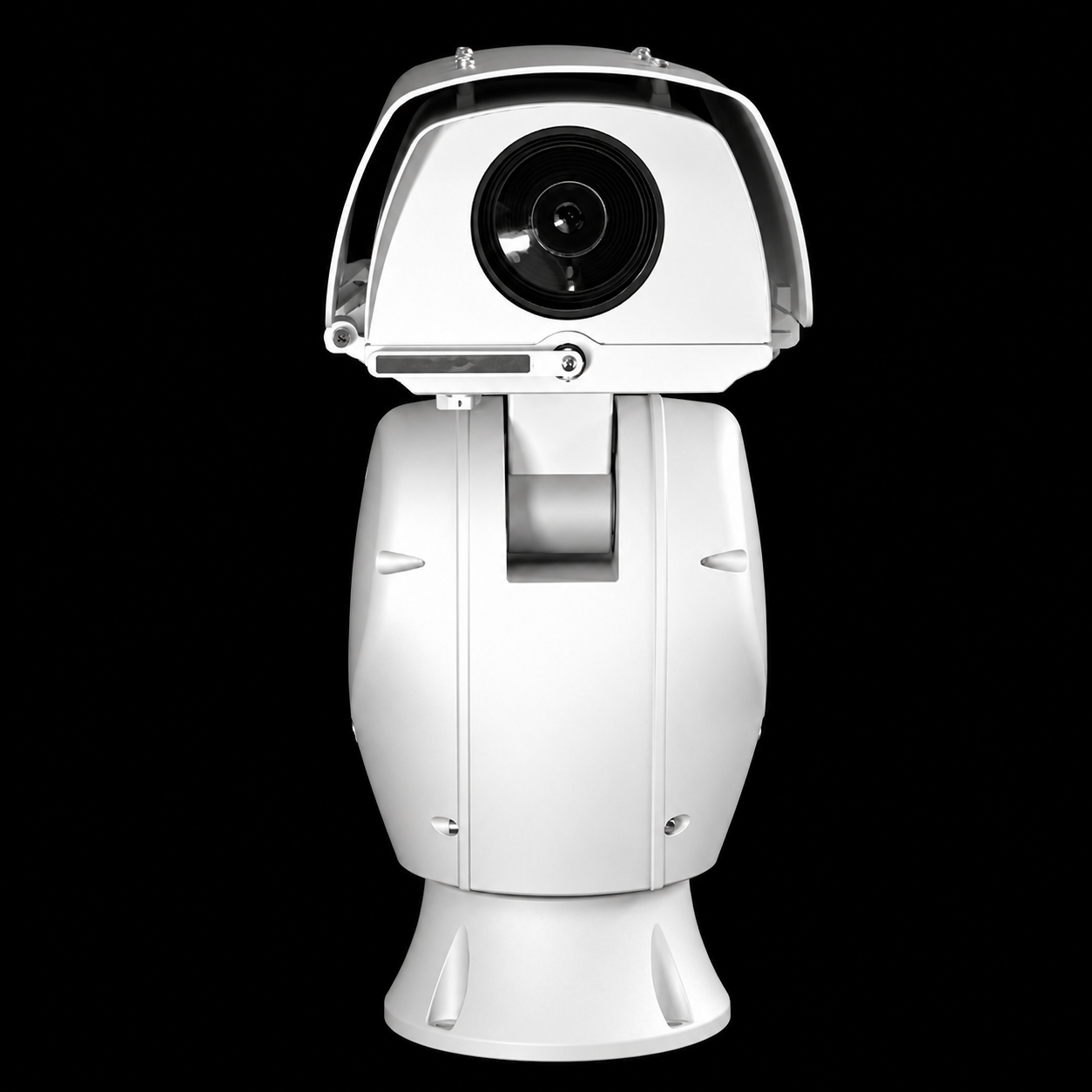

Laser Bird Deterrent System

EV800

Overview

The Laser Bird Deterrent System adopts a specialized wavelength laser specifically designed for bird deterrence. The system provides long-range deterrence capability. During operation, it produces no noise and no pollution. Designed to IP65 protection standards, it is suitable for both outdoor and indoor use at airports.

Angular Coverage Specifications

Vertical angle: Max +45° to -90° ; 360° continuous horizontal rotation

Motion Performance Parameters

Transmission: Synchronous belt drive for both horizontal and vertical axes; Horizontal speed: 0.1–100°/s; Vertical speed: 0.1–50°/s

Environmental Adaptability

All-weather design, protection level ≥ IP65; Operating temperature (pan-tilt unit): -40℃ to +60℃

Communication Specifications

Communication protocol: Optional Pelco D/P; Communication interface: RS422/RS485 supported; Supports RS485 control

Dimensions (Unit: mm)

TECHNICAL SPECIFICATIONS

Infrared Laser Function
Specification	Value
Laser Type	Continuous / Intermittent
Wavelength	520 ± 5nm
Beam Type	Line-shaped
Irradiation Distance	≈800 m (night) / 100 m (day)
Output Power	≥1500mW
Laser Color	Green
Emission Angle	5°

Pan-Tilt Functions
Specification	Value
Rotation Range	Pan: 360° continuous; Tilt: -90° to +45
Rotation Speed	Pan: 0.1–100°/s; Tilt: 0.1–50°/s
Preset Positions	255 presets supported
Auto Patrol	Supported
Power-Off Memory	Supports memory of last state before power-off
Angle Control	Supported
Fan/Heater	Real-time temperature detection (physical only)
Waterproof Breathers	Built-in dual breathers to reduce fog/condensation

General Specifications
Specification	Value
Power Supply	DC 24V / 5.0A
Operating Temperature	-40℃ to +60℃
Operating Humidity	0–95% (non-condensing)
Protection Rating	IP65 with built-in lightning, surge, and spike protection
Dimensions (L×W×H)	L355mm×W204mm×H443.5mm
Product Weight	≤9kg
Payload Capacity	≤4kg
