BIRD DETECTION

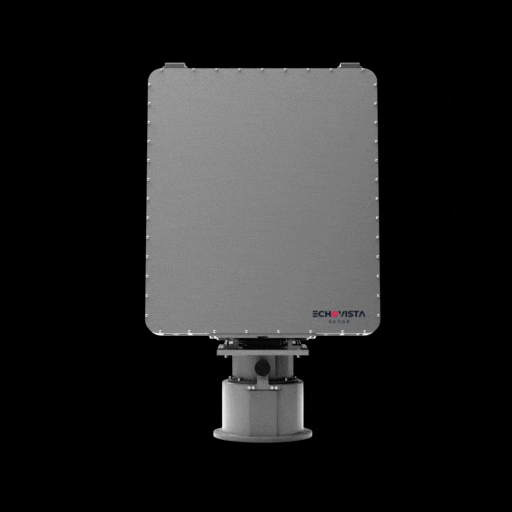

EV-B10

OVERVIEW

The B10 Bird Surveillance Radar is a high-performance system designed for airports, capable of accurately tracking single birds and flocks from small to large sizes. It provides key data such as flight trajectory, speed, altitude, and direction, supports integration with electro-optical devices for visual display, and can link with bird deterrent systems to create an integrated detection-and-deterrence solution. Powered by advanced Digital Beamforming (DBF) technology, it delivers high precision, multi-target processing, and low power consumption, achieving 360° azimuth and 45° elevation coverage for comprehensive, all-weather monitoring even in complex weather and electromagnetic conditions.Combining high performance with portability, the B10 features a compact, lightweight design that supports tripod mounting for rapid deployment in various environments. With a radar refresh interval adjustable to 2 seconds and advanced target trajectory fusion algorithms, it ensures continuous tracking of bird flight paths and behaviors, making it an ideal choice for all-weather airport bird monitoring and risk management.

Wide Coverage with Accurate Detection

Utilizes azimuth mechanical scanning and elevation DBF technology to achieve 360° azimuth and 45° elevation coverage, enabling full-range, all-weather monitoring of avian activity.

High Refresh Rate for Dynamic Tracking

Radar refresh interval adjustable to 2s/3s, combined with advanced target recognition and trajectory fusion algorithms for continuous tracking of bird flight patterns and behaviors.

Low False Alarm Rate in Complex Backgrounds

Equipped with adaptive clutter suppression technology to effectively filter ground, surface, and meteorological interference, improving bird target detection accuracy and reducing false alarms.

Portable Deployment for Rapid Operation

Compact and lightweight design supports tripod mounting, enabling quick deployment across various environments.

Strong Anti-Interference Capability

Designed with excellent electromagnetic compatibility, ensuring stable performance in complex environments such as airports and wind farms.

Robust Multi-Target Tracking

Capable of simultaneously tracking over 200 bird targets(Optional upgrade to 500 targets), meeting the needs of high-traffic migration periods or bird-rich environments.

System Compatibility for Integrated Bird Deterrence

Provides standardized interfaces and a user-friendly UI, easily integrating with laser, acoustic, or other deterrent systems for a complete detection-to-deterrence solution.

CORE ADVANTAGES

· –5° to +40° elevation coverage with only a 50 m blind zone, ideal for monitoring low-altitude birds around runways and taxiways. · Detects small birds at ≥5 km and large birds or flocks at ≥10 km, enabling reliable 24/7 avian detection. · High tracking accuracy (≤0.4°) supports reliable bird classification and trajectory analysis. · 30 rpm scan rate enables real-time tracking of fast or maneuvering birds. · Tracks 200+ bird targets(Optional upgrade to 500 targets) simultaneously for comprehensive airport bird monitoring.

SPECIFICATIONS

General

Operating Frequency: X-Band; Elevation Coverage (Vertical Field of View): -5° to 40°; Azimuth Coverage (Horizontal Field of View): 360°; Detection Range: Small Bird(RCS = 0.01 m²): ≥ 5 km; Big Bird OR Flock (RCS=1 m²): ≥10 km Maximum Detection Altitude: ≥ 1000 meters Blind Zone: ≤ 50 meters Range Accuracy: ≤ 5 meters (RMS) Angular Accuracy: Azimuth ≤ 0.4° (RMS), Elevation ≤ 0.4° (RMS)

General

Antenna Rotation Speed: 20 rpm (3s); 30 rpm (2s) Simultaneous Tracking Targets: ≥ 200(Optional upgrade to 500 targets) Tracking Velocity Range: 1–150 m/s Excellent clutter suppression, no false alarms from common clutter sources Power Supply: DC 36–52V (with AC220V–DC48V adapter) Communication: Gigabit Ethernet with aviation plug Power Consumption: ≤220W

Environmental Adaptability

Operating Temperature: -40°C to +55°C Operating Humidity: ≤90% Protection Rating: IP66 (Main Unit: IP67)

Weight & Dimensions

Main Unit: 14 kg, Size: 595 × 500 × 85 mm Rotating Platform: 13.5 kg, Size: 400 × 228 × 216 mm Tripod: 12 kg, Size: 940 × 230 × 230 mm Packaging (Main Unit): 23 kg, Size: 590 × 700 × 170 mm Packaging (Platform): 26 kg (incl. all accessories), Size: 500 × 480 × 400 mm Packaging (Tripod): 15 kg, Size: 1140 × 290 × 290 mm

AIRPORT BIRD STRIKE PREVENTION & WILDLIFE HAZARD MANAGEMENT

Provides 24/7 monitoring of bird activity around runways, taxiways, and airport facilities. Tracks individual birds and flocks in real time and supports integration with bird deterrent systems to reduce bird strike risks and enhance aviation safety.

WIND FARM BIRD MONITORING

Monitors bird activity around wind turbines and identifies potential collision risks. Supports environmental compliance and helps operators balance renewable energy production with wildlife protection.

COASTAL & MARINE BIRD MONITORING

Tracks seabird activity and migration patterns along coastlines, ports, islands, and offshore facilities. Provides valuable data for marine conservation and offshore infrastructure management.

ENVIRONMENTAL PROTECTION & NATURE RESERVE MONITORING

Supports long-term monitoring of bird populations and behavior in wetlands, parks, and nature reserves. Provides scientific data for biodiversity conservation, ecological studies, and environmental assessments.

OIL & GAS FACILITY MONITORING

Monitors bird activity around refineries, LNG terminals, offshore platforms, and pipeline corridors. Helps support environmental management and reduce wildlife-related operational risks.

BIRD MIGRATION MONITORING

Tracks seasonal bird migration routes, flight altitude, speed, and movement patterns. Delivers valuable insights for wildlife conservation, research, and environmental planning.
