AI-POWERED SURVEILLANCE PANEL RADAR

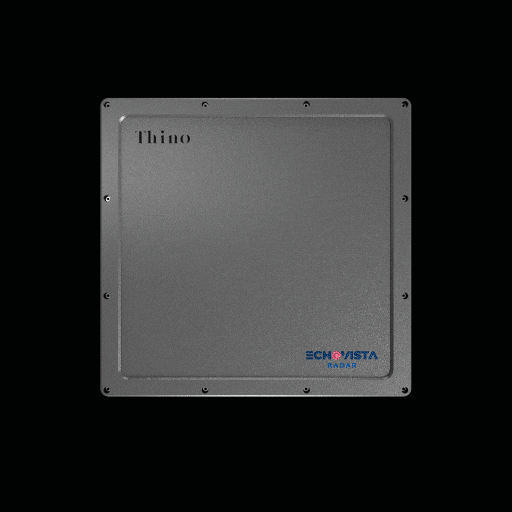

THINO

OVERVIEW

EchoVista is at the forefront of innovation in surveillance and defence technologies, specialising in compact, portable, and high-performance radar systems. Its flagship product, “Thino,” is the AI-powered Next Generation Compact/Carry-On Multifunction Surveillance Panel Radar System, which combines low-altitude and ground radar sensors with advanced artificial intelligence. The system offers all-weather surveillance, precise classification, and adaptive functionality, designed to address threats from unmanned aerial systems (UAS) and ground-level challenges. With AI-driven analytics and precision engineering, it provides real-time solutions to enhance situational awareness and decision-making in dynamic environments, making it ideal for defence and public safety applications.

Embedded AI Module

AI enables efficient target recognition, dynamic environmental awareness, and signal masking, significantly enhancing system intelligence and battlefield survivability.

Flexible and Portable Modular Design

Lightweight modular structure supports rapid deployment and multi-platform installation.

Mobile Surveillance

Stable, continuous, and efficient surveillance is maintained during maneuvering operations.

High-Performance Radar Radome

Advanced electromagnetically transparent composite radome reduces transmission loss by approximately 40% compared to conventional designs.

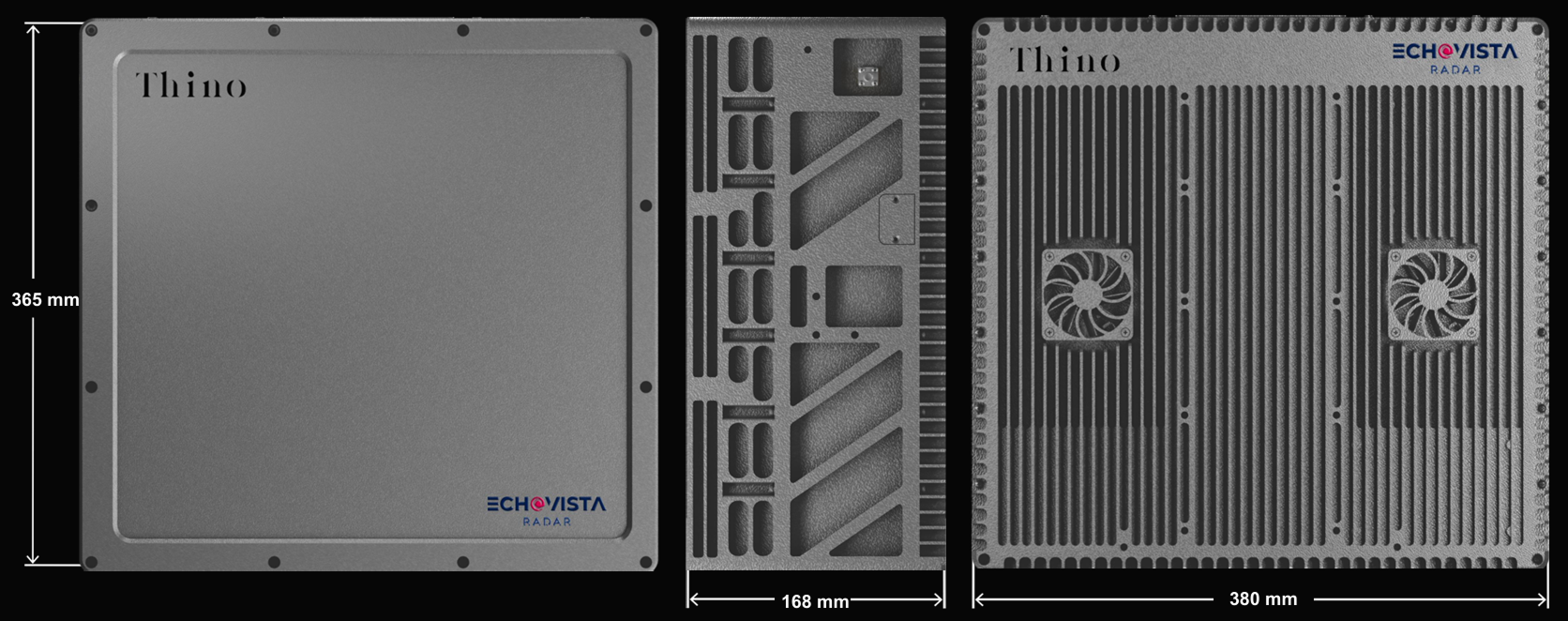

RADAR DIMENSIONS

TECHNICAL SPECIFICATIONS

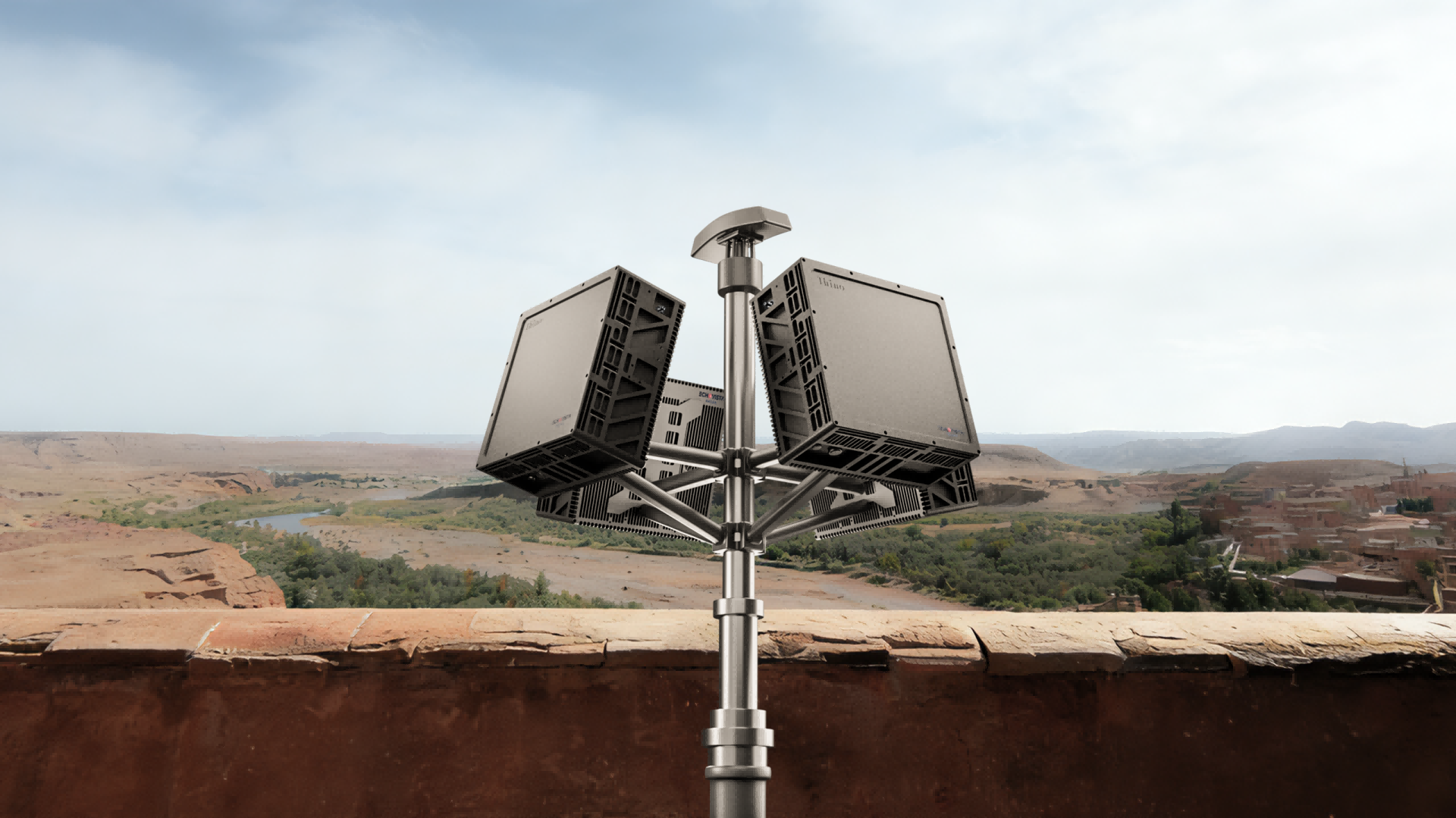

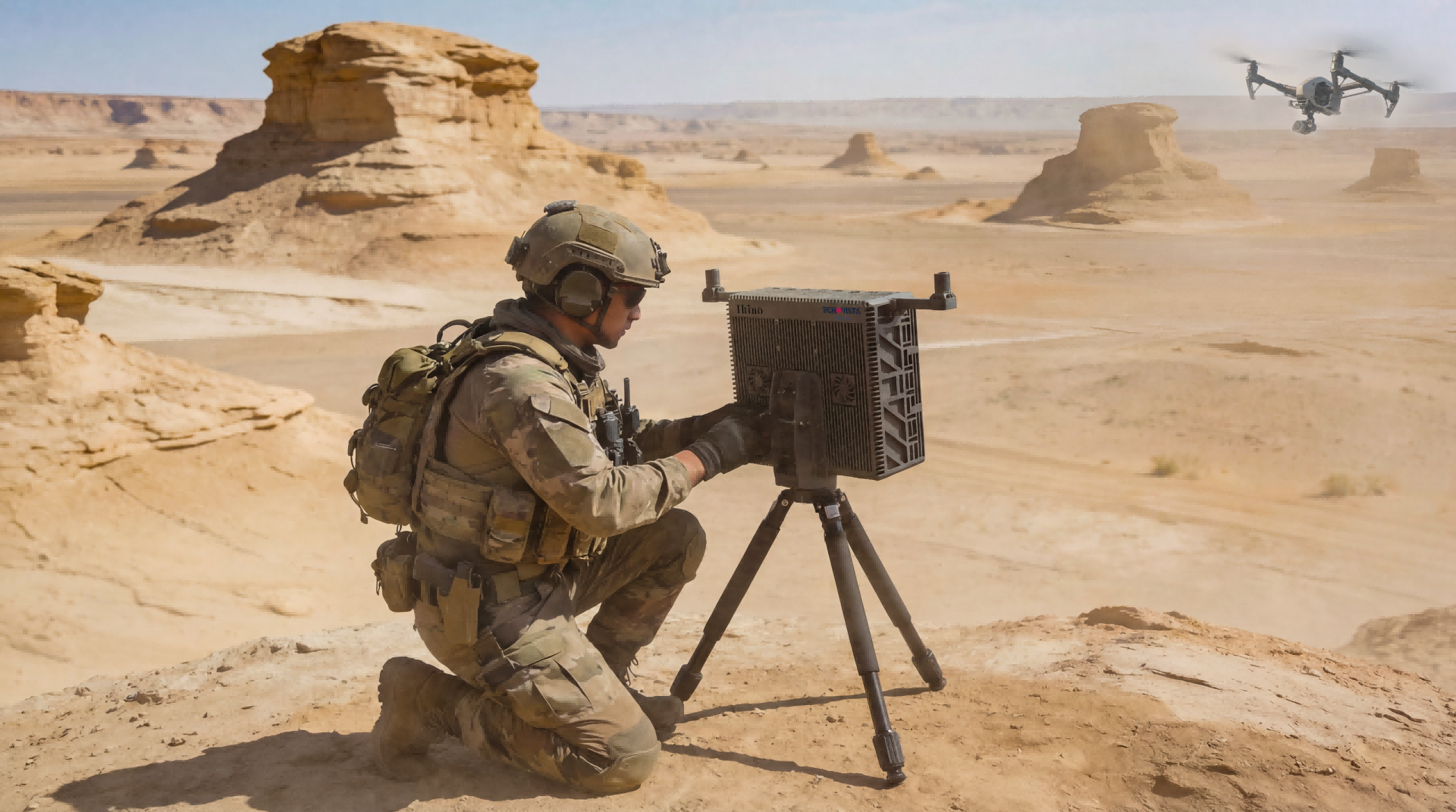

MOUNTING OPTIONS

The AI-powered surveillance Panel radar weighs only 19kg, enabling quick deployment for portability and versatility.

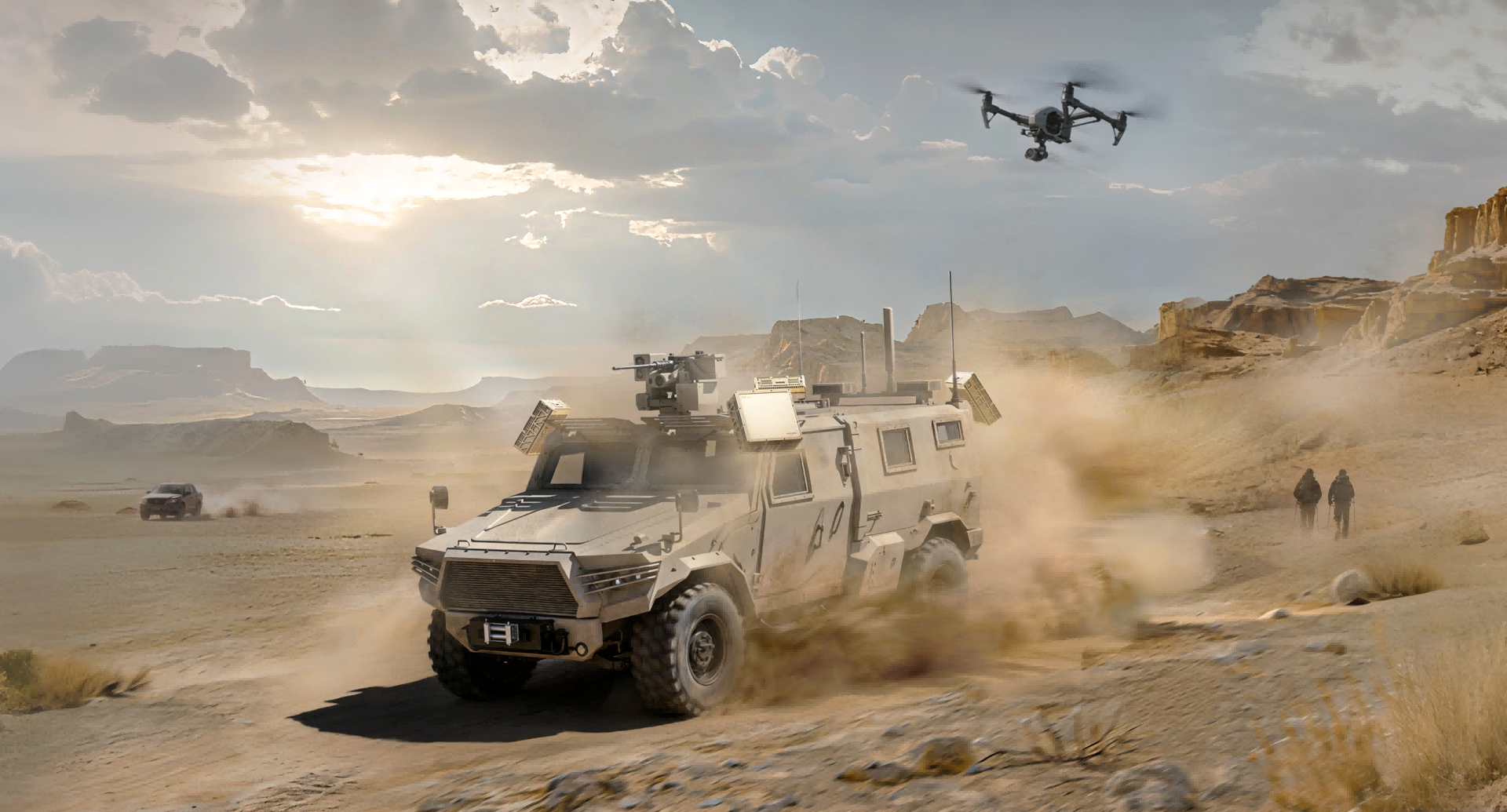

Vehicle-Mounted

SOFTWARE AND SUPPORT

CONTINUOUS SOFTWARE IMPROVEMENT

Regular updates to enhance radar performance and ensure efficient operation in various environments. Includes major and minor version updates, expanding features and fixing issues.

INTEGRATED R&D SUPPORT

Unified hardware and software development for radar, ensuring continuous technological innovation and product optimization.

AFTER-SALES SUPPORT SYSTEM

Offers daily maintenance, hardware updates, and software upgrades to ensure long-term system stability. Provides customized software interface development and debugging services to ensure smooth system integration.

PRIORITY TECHNICAL SUPPORT

Provides training, system integration, troubleshooting, and performance evaluation to ensure quick resolution of issues. Users can submit feature requests and suggestions to assist in product optimization and upgrades.

BorderPatrol

IP66 protection (-32℃ to +55℃) adapts to harsh terrains. 90°×90° FOV, ≤0.5° accuracy, 18km UAV/15km personnel detection. Lightweight modular design enables rapid vehicle/tripod deployment. AI classifies targets, activates countermeasures for efficient border control.

Government

MIL-STD-810H/461F compliant, fighter-grade radome. ~19kg, multi-platform mounting (vehicles/towers/tripods). ≤3s search rate, detects UAVs (18km)/helicopters (10km)/ground targets. AI signal masking enhances situational awareness and survivability.

Airports

X-band (IEC 62311:2019) avoids navigation interference. 18km UAV/10km helicopter detection, all-weather capability. Flexible tower/vehicle mounting secures runways, aprons against unauthorized access.

Prisons

360° coverage, 90°×90° FOV, ≤0.5° accuracy. Detects fence breaches, contraband-dropping UAVs. AI reduces false alarms, IP66 ensures outdoor stability. Integrates with existing security systems.

Nuclear Facilities

24/7 surveillance, 18km UAV/ground target detection. EMC/environmental compliance. Modular design enables quick deployment and system integration for high-level security.

Mining

IP66, -32℃ to +55℃ operation resists harsh conditions. Monitors work zones/equipment, alerts to hazards/theft. Multi-mount options + AI anomaly detection boost safety/efficiency.

Infrastructure

Flexible vehicle/tower deployment. All-weather, ≤0.5° accuracy detects saboteurs/UAVs. Modular design cuts remote maintenance costs, integrates with existing systems.

Oil & Gas

Covers extensive sites, detects 18km UAVs/15km personnel. EMC resistance, AI minimizes false alarms. Links to optical/countermeasure modules to safeguard production/transport.

RADAR PERFORMANCE
Operating Frequency	X-band
Field of View	90° Azimuth x 90° Elevation
Detection Accuracy	Azimuth ≤ 0.5°
	Elevation ≤ 0.5°
	Range ≤ 10m
Data Rate	Search Rate: ≤ 3s
Data Rate	Tracking Rate: 2Hz @ 6 targets, 12Hz @ 1 target
Max Tracks	> 1,000 Objects of Interest
Detection Range
SWaP & ENVIRONMENTAL
Dimensions	38cm × 36cm × 16cm
Weight	≈19kg
Power Consumption and Supply	38-60V DC, Power Consumption ≤ 0.45 kW
Temperature	Operating :-32℃ to +55℃
Temperature	Storage :-40℃ to +65℃
Protection Level	IP67
Environmental	MIL-STD-810 H
EMC	MIL-STD-461F（RE102、RE103、CE102、CS101、CS114、CS115 and RS103）、IEC 62311: 2019
