Al Multi-Function Bird Dispersal System
EV900BMF
Overview
The PV900BMF Intelligent Multi-Function Bird Dispersal System integrates specialized wavelength lasers, directional acoustic waves, and ultrasonic technology. Going beyond traditional bird deterrent devices, it incorporates AI video recognition technology, enabling real-time identification of birds inside hangars and activating lasers, acoustic waves, and ultrasonic waves to drive them away. The system supports real-time remote control via a management platform without interfering with surrounding equipment. Designed for year-round deployment, it is suitable for airports, orchards, farmlands, warehouses, and power transmission facilities.
plus
plus
plus
plus

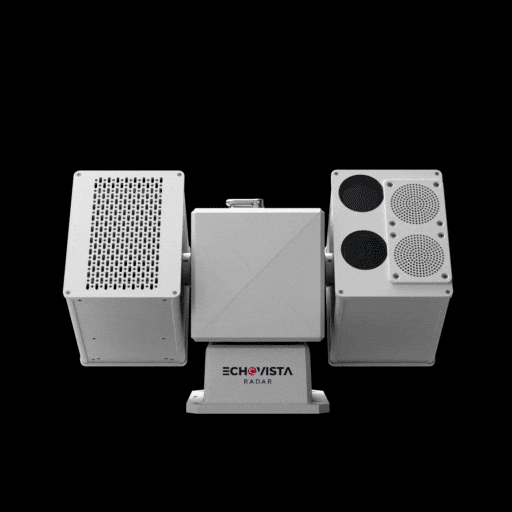

产品图片 1

Enhanced Safety

Prevents bird strikes that may cause damage to aircraft, ensuring the safety of both aircraft and personnel.

Reduced Maintenance Costs

Minimizes frequent cleaning and maintenance caused by bird droppings and nesting.

Improved Operational Efficiency

Prevents birds from entering critical areas, ensuring uninterrupted operations and reducing downtime.

Eco-Friendly

Employs non-lethal deterrence methods, maintaining a bird-free environment while ensuring wildlife protection.

Multi-Modal Deterrence

Integrated deterrence through lasers, ultrasonic waves, and acoustic waves.

Product Features
· AI bird detection with a 2MP camera, automatically activating laser, acoustic, and ultrasonic deterrents. · Multi-mode deterrence using 520 nm or 532nm lasers, ultrasound, and bird-deterrent audio. · 360° full coverage with –90° to +90° tilt for complete 3D monitoring. · Hangar-suitable design with IP56/IP66 protection.
Technical Specifications
Camera
AI Recognition: Supports bird identification Image Sensor: 1/2.8” Progressive Scan CMOS Resolution: 2 Megapixels Focal Length: 5.5-192mm Optical Zoom: 35x
Laser Function
Wavelength: 520±5nm Laser Power: 1500mW Operation Mode: Laser curtain (customizable to linear pattern as required) Effective Range: ≥800m (night) / ≥100m (day) Power and wavelength customizable upon confirmation
Acoustic Function
Rated Power: 10W Maximum Sound Pressure (@1m): 122dB Directivity: 27° @ -3dB Operation Mode: Multiple audio source switching
Ultrasonic Function
Operating Power: 2×5W/H Frequency Range: 1.5KHz–25KHz Sound Pressure: 120dB @ 1m Operation Mode: Variable-frequency / fixed-frequency
